SQL JOIN Commands

Perform JOIN operations with SQL

Introduction

SQL (Structured Query Language) is a domain-specific language used to manage data, especially in a relational database management system (RDBMS)

JOIN clause combines rows from two or more tables, based on a related column between them.

Here are the different types of JOINs in SQL:

INNER JOIN: returns only rows that have matching values in both tables
LEFT (OUTER) JOIN: returns all rows from the left table, and only the matched rows from the right table
RIGHT (OUTER) JOIN: returns all rows from the right table, and only the matched rows from the left table
FULL (OUTER) JOIN: returns all rows when there is a match in either the left or right table

Let’s take a couple of tables named sensors and rooms.

Most of the code blocks below must run within MySQL command line interface. It usually has mysql> string beforehand each command.

First of all, you must create the database.

CREATE DATABASE test;

USE test; # tells to use the newly created test DB

Then, create the tables you’ll work on.

CREATE TABLE command is used to create a new table. You must provide data type definition foreach column of the table.

CREATE TABLE IF NOT EXISTS sensors (
  id INT PRIMARY KEY AUTO_INCREMENT,
  temperature FLOAT NOT NULL COMMENT 'Temperature in Celsius degree measured by the sensor',
  time TIME NOT NULL COMMENT 'Time in hh:mm:ss format of the moment in which the data was captured',
  room_id INT NOT NULL COMMENT 'Identifier of the room where the sensor is located'
);

CREATE TABLE IF NOT EXISTS rooms (
  room_id INT PRIMARY KEY AUTO_INCREMENT,
  name VARCHAR(10) NOT NULL COMMENT 'Room name',
  square_meters INT NOT NULL COMMENT 'Dimension of the room in square meters'
);

You can then take a look at the structure of the table with:

DESCRIBE sensors;

DESCRIBE rooms;

It will output this:

+-------------+-------+------+-----+---------+----------------+
| Field       | Type  | Null | Key | Default | Extra          |
+-------------+-------+------+-----+---------+----------------+
| id          | int   | NO   | PRI | NULL    | auto_increment |
| temperature | float | NO   |     | NULL    |                |
| time        | time  | NO   |     | NULL    |                |
| room_id     | int   | NO   |     | NULL    |                |
+-------------+-------+------+-----+---------+----------------+

+---------------+-------------+------+-----+---------+----------------+
| Field         | Type        | Null | Key | Default | Extra          |
+---------------+-------------+------+-----+---------+----------------+
| room_id       | int         | NO   | PRI | NULL    | auto_increment |
| name          | varchar(10) | NO   |     | NULL    |                |
| square_meters | int         | NO   |     | NULL    |                |
+---------------+-------------+------+-----+---------+----------------+

Then insert some data in order to test different joins:

-- insert sensors
INSERT INTO sensors (temperature, time, room_id) VALUES
(21.5, '08:00:00', 1),
(22.0, '12:00:00', 1),
(19.8, '08:00:00', 2),
(20.1, '18:00:00', 2),
(23.4, '09:30:00', 3),
(30.0, '10:00:00', 99);  -- orphan sensor: room_id 99 doesn't exist in rooms

-- insert rooms
INSERT INTO rooms (room_id, name, square_meters) VALUES
(1, 'Kitchen', 15),
(2, 'Bedroom', 20),
(3, 'Office', 12),
(4, 'Bathroom', 6),   -- no sensors will reference this room
(5, 'Attic', 25);     -- no sensors will reference this room either

INNER JOIN

SELECT rooms.name, sensors.temperature, sensors.time
FROM rooms
INNER JOIN sensors ON rooms.room_id = sensors.room_id;

The above query can be simplified into this query:

SELECT r.name, s.temperature, s.time
FROM rooms r
INNER JOIN sensors s ON r.room_id = s.room_id;

The result of this INNER JOIN query is:

+---------+-------------+----------+
| name    | temperature | time     |
+---------+-------------+----------+
| Kitchen |        21.5 | 08:00:00 |
| Kitchen |          22 | 12:00:00 |
| Bedroom |        19.8 | 08:00:00 |
| Bedroom |        20.1 | 18:00:00 |
| Office  |        23.4 | 09:30:00 |
+---------+-------------+----------+

It is returning only rows that have matching values in both tables.

LEFT JOIN

Left table is rooms while right table is sensors.

SELECT r.name, s.temperature, s.time
FROM rooms r
LEFT JOIN sensors s ON r.room_id = s.room_id;

The result of this LEFT JOIN query is:

+----------+-------------+----------+
| name     | temperature | time     |
+----------+-------------+----------+
| Kitchen  |          22 | 12:00:00 |
| Kitchen  |        21.5 | 08:00:00 |
| Bedroom  |        20.1 | 18:00:00 |
| Bedroom  |        19.8 | 08:00:00 |
| Office   |        23.4 | 09:30:00 |
| Bathroom |        NULL | NULL     |
| Attic    |        NULL | NULL     |
+----------+-------------+----------+

Returns all rooms, even without sensors.

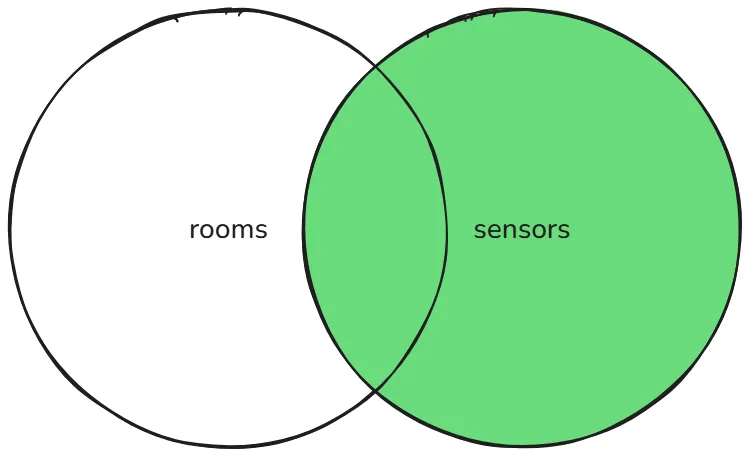

RIGHT JOIN

Left table is rooms while right table is sensors.

SELECT r.name, s.temperature, s.time
FROM rooms r
RIGHT JOIN sensors s ON r.room_id = s.room_id;

The result of this RIGHT JOIN query is:

+---------+-------------+----------+
| name    | temperature | time     |
+---------+-------------+----------+
| Kitchen |        21.5 | 08:00:00 |
| Kitchen |          22 | 12:00:00 |
| Bedroom |        19.8 | 08:00:00 |
| Bedroom |        20.1 | 18:00:00 |
| Office  |        23.4 | 09:30:00 |
| NULL    |          30 | 10:00:00 |
+---------+-------------+----------+

Returns all sensors, even the one that are not assigned to any rooms.

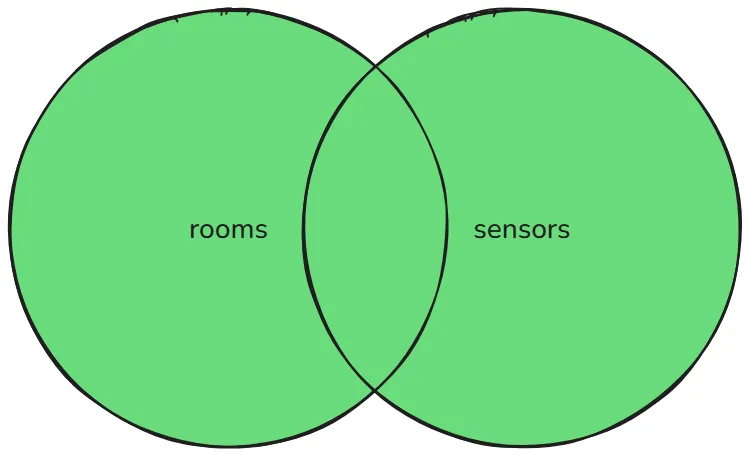

FULL JOIN

Since MySQL cannot use FULL JOIN clause, you’ll need to emulate it:

SELECT r.name, s.temperature, s.time
FROM rooms r
LEFT JOIN sensors s ON r.room_id = s.room_id
UNION
SELECT r.name, s.temperature, s.time
FROM rooms r
RIGHT JOIN sensors s ON r.room_id = s.room_id;

The result of this query is:

+----------+-------------+----------+
| name     | temperature | time     |
+----------+-------------+----------+
| Kitchen  |          22 | 12:00:00 |
| Kitchen  |        21.5 | 08:00:00 |
| Bedroom  |        20.1 | 18:00:00 |
| Bedroom  |        19.8 | 08:00:00 |
| Office   |        23.4 | 09:30:00 |
| Bathroom |        NULL | NULL     |
| Attic    |        NULL | NULL     |
| NULL     |          30 | 10:00:00 |
+----------+-------------+----------+
