React CRUD API

💻 Frontend Projects 📂 react-crud-api

Introduction

CRUD stands for Create, Read, Update and Delete.

Those are the basic operations you would perform on a database entity. In this blog post, we’ll be using a super-simple User entity with name and age properties.

Languages & Tools

This project combines:

1. React library,
2. Typescript language superset,
3. Vite build tool.

React library

React is the library for web and native user interfaces.

Key features of this library are:

• create and nest components,
• write markup with JSX (JavaScript XML) and TSX (Typescript-based JSX),
• conditional rendering,
• event-driven rendering

A key advantage of React is that it only re-renders those parts of the page that have changed, avoiding unnecessary re-rendering of unchanged DOM elements.

Typescript language

I prefer to use typed languages, so I always combine React with Typescript superset.

Moreover, for this project I took inspiration from code generated from:

API Platform Client generator from API structure

I really suggest to take a look at that project!

Vite tool

Last but not least, in this project I am using Vite (French word for “quick”, pronounced like “veet”) is a build tool that aims to provide a faster and leaner development experience for modern web projects. It consists of two major parts:

1. development server that provides feature enhancements over native ES modules,
2. build command that bundles the code with Rolldown, pre-configured to output optimized static assets for production.

The backend

The backend we’re using is:

Spring Boot CRUD API Simple backend in Spring Boot

You can find the code here:

🍃Spring Boot Projects 📂 user_crud_server

Project Structure

Code Structure

The project structure is:

• Directorysrc

  • Directoryassets/ images

    • …
  • Directorycomponents/ TSX files

    • Directoryuser

      • Create.tsx wrapper for the form
      • Form.tsx allow to create and update
      • List.tsx GET all
      • Show.tsx GET single
      • Update.tsx wrapper for the form
    • …
  • Directoryconfig/

    • entrypoint.ts
  • Directoryhooks/ backend calls

    • create.ts
    • delete.ts
    • fetch.ts
    • list.ts
    • retrieve.ts
    • show.ts
    • update.ts
    • …
  • Directoryinterfaces/ using strongly-typed languages

    • …
  • Directoryroutes/ React Router configs

    • …
  • Directorystyle/ .css files

    • …
  • Directoryutils/

    • …
  • App.jsx landing page
  • main.jsx app JSX entrypoint
• index.html app entrypoint that calls ./src/main.jsx

As you can see, the UI (.tsx files inside components directory) is decoupled from business logic (.ts files inside hooks directory).

Project Routes

CRUD app routes are very important:

• /users: list all the users,
• /users/create: allow creation of a new user,
• /users/edit/:id: allow editing of a user given its id,
• /users/edit/:id: show a user given its id,

Eventually, you can also implement /users/delete/:id that could allow to delete a user given its id.

In this application, user deletion is performed through a web +Dialog*.

App Screenshot

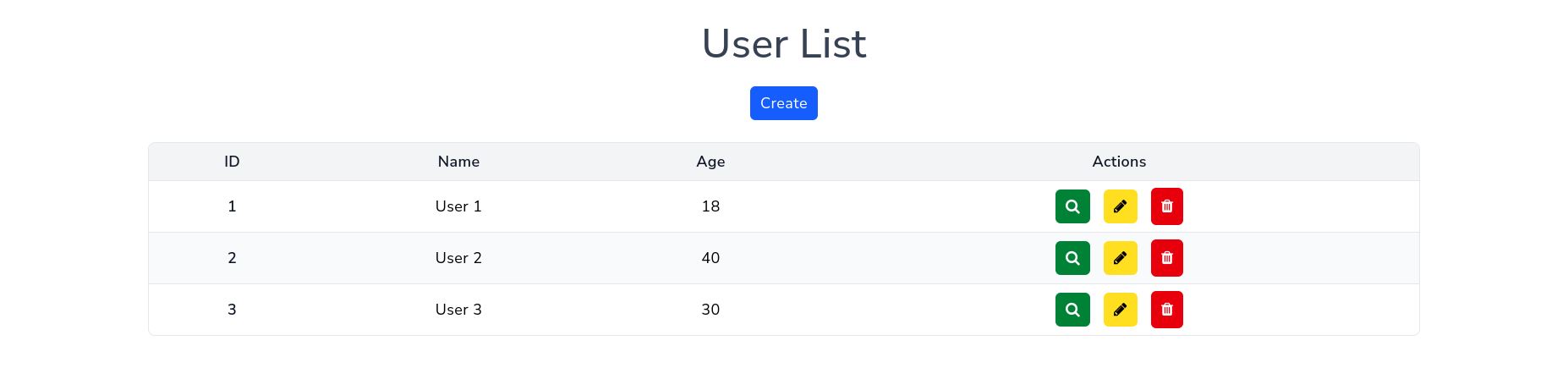

List Users

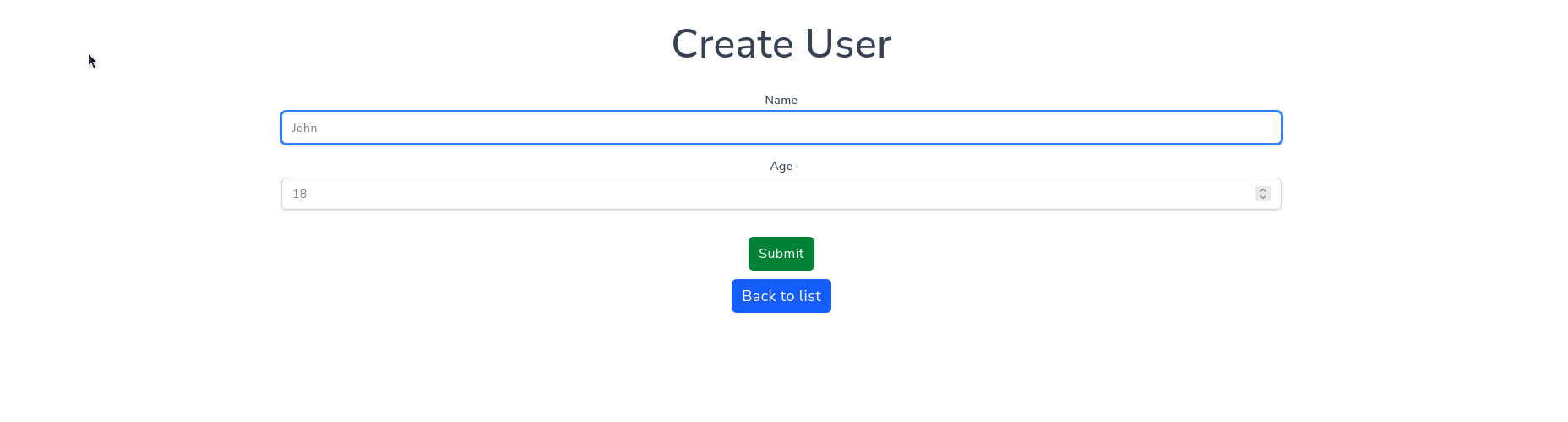

Create new user

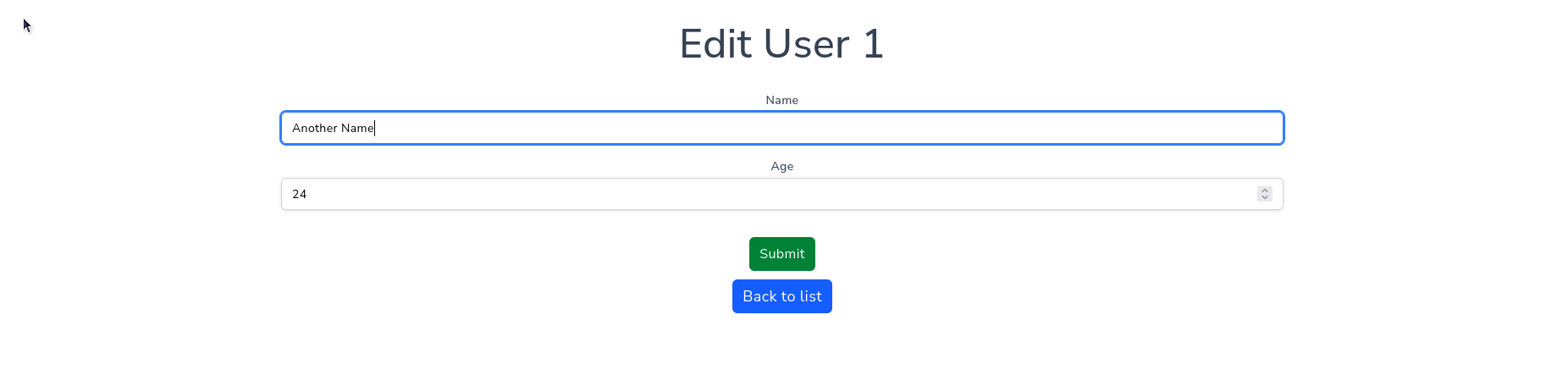

Edit user

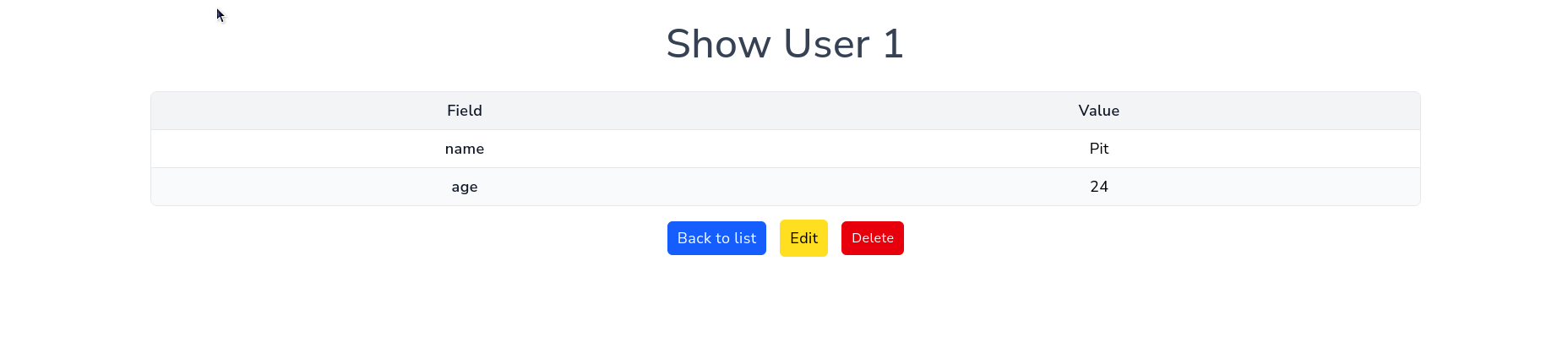

Show user

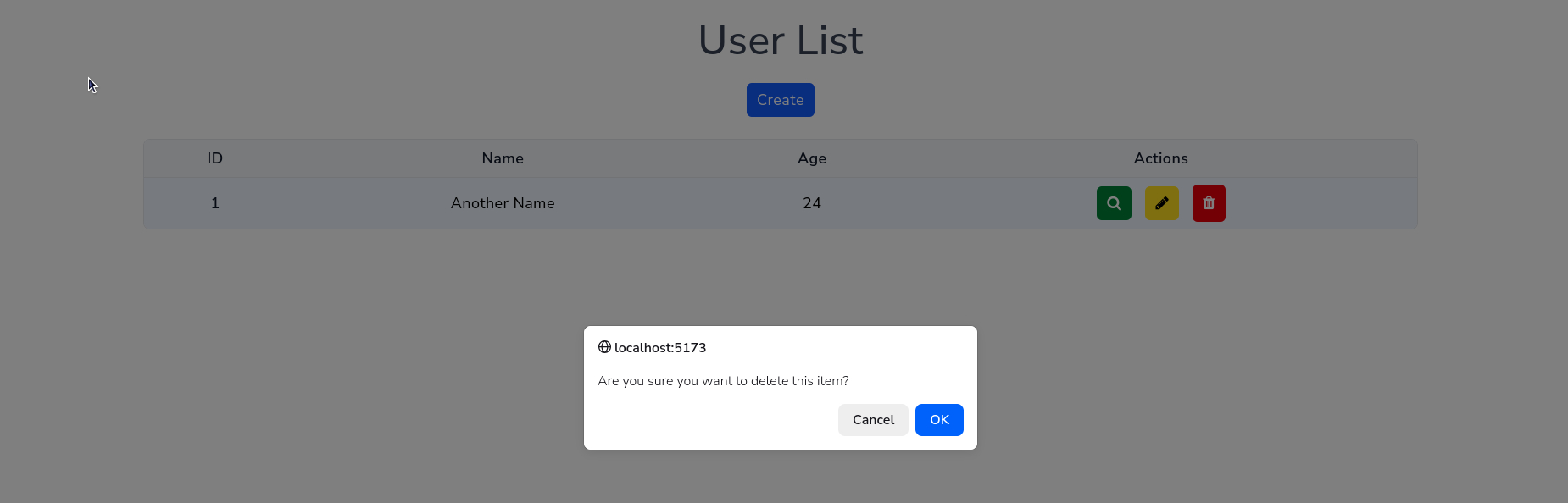

Delete user

In this example, delete operation is implemented as a dialog, not a separated page.
