Spring Boot CRUD API

🍃Spring Boot Projects 📂 user_crud_server

Introduction

Let’s expose user CRUD API without implementing any HTML views.

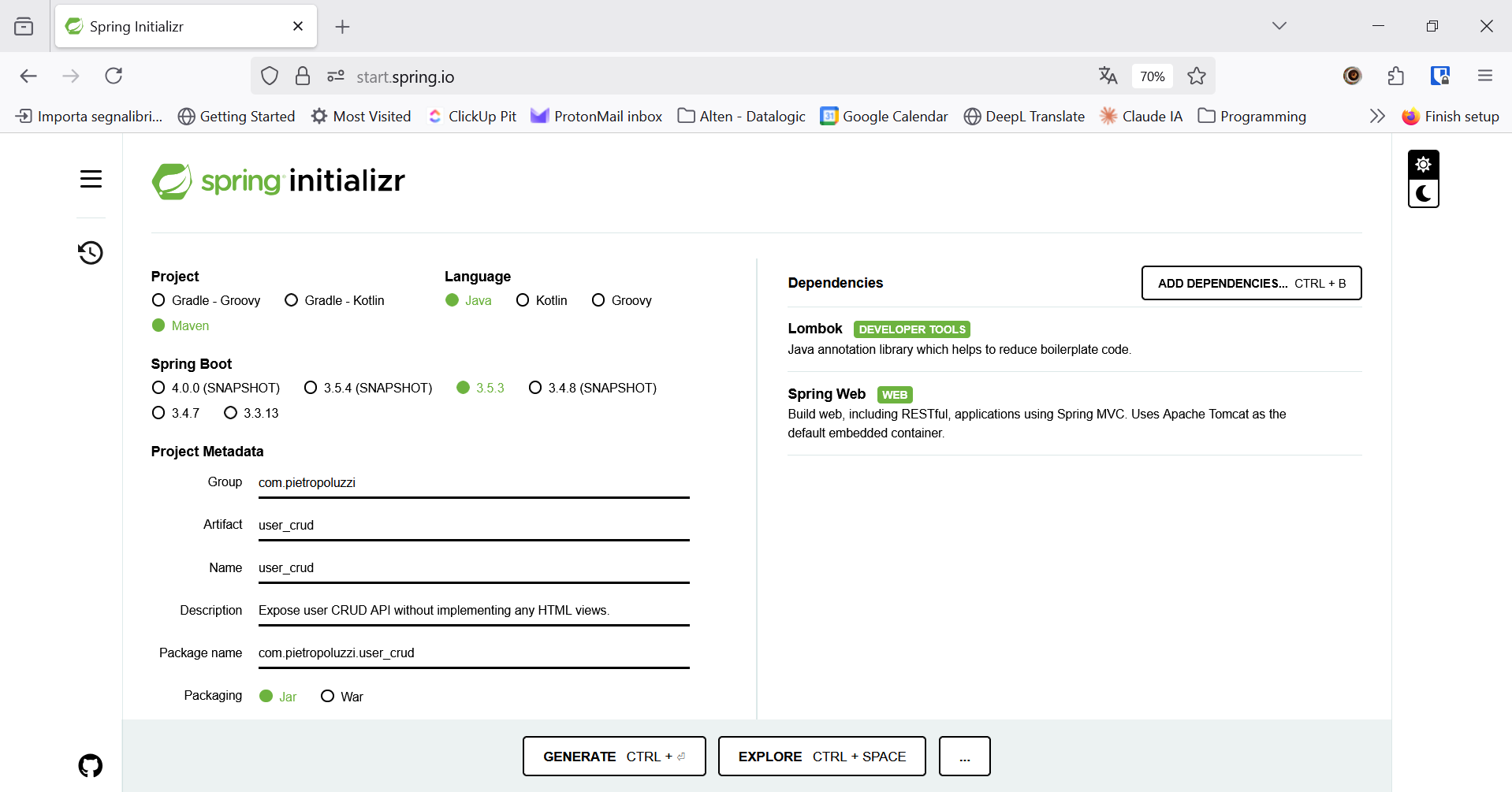

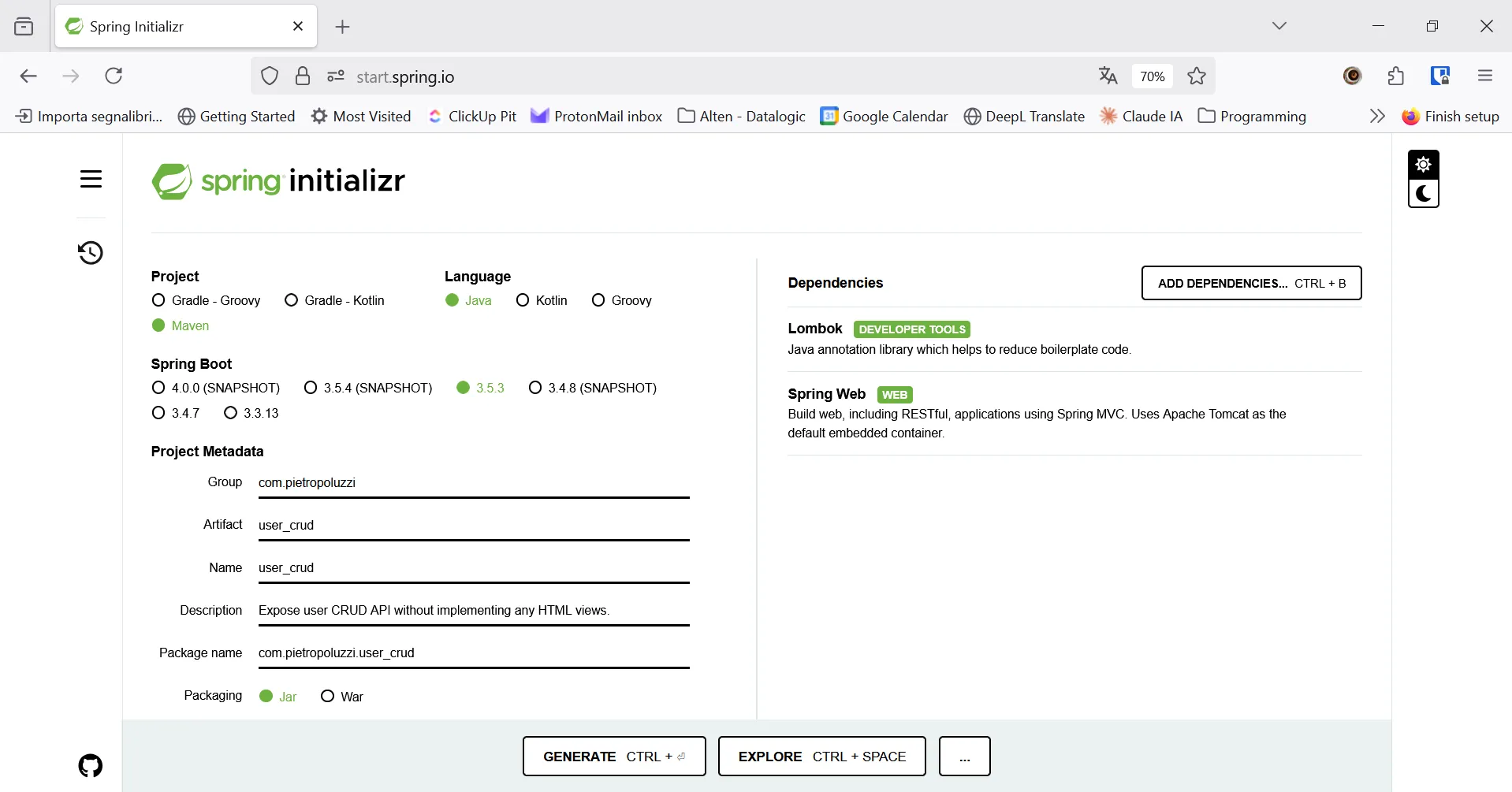

You can use spring initializr to create the project skeleton.

Server

Server Project Structure

The project structure is:

• Directorysrc.main

  • Directoryjava.com.pietropouzzi.user_crud_server

    • Directorycontrollers

      • UserController.java
    • Directorymodels

      • User.java
      • UserRequest.java
    • Directoryservices

      • UserService.java
    • Directoryswagger

      • SwaggerCreateUser.java
      • …
    • UserCrudApplication.java
  • Directoryresources

    • application.properties

Let’s take a closer look to the components’ duties by zooming in into user_crud_server package:

• Directorycontrollers

  • UserController.java exposes API endpoints, instantiates the service
• Directorymodels

  • User.java database model
  • UserRequest.java API response model
• Directoryservices

  • UserService.java business logic that implements CRUD operations
• Directoryswagger

  • SwaggerCreateUser.java @interface annotation for Swagger UI’s POST API endpoint
  • … all the other Swagger annotation interfaces
• UserCrudApplication.java starting point of Spring Boot application

Server Code

1. Model
   A record class is a shallowly immutable, transparent carrier for a fixed set of values, called record components. Let’s define the user model as a java Record with the following record components: id, name and age.
2. Service
   Defines how the CRUD operations are performed. Let’s use a .csv file to avoid implementing a whole database structure.
3. Controller
   Expose APIs based on the Service methods.

If you don’t want to move away from my blog, here is the code!

Model

User.java

package com.pietropoluzzi.user_crud_server.models;

public record User(Long id, String name, int age) {
}

Service

UserService.java

package com.pietropoluzzi.user_crud_server.services;

// imports...

@Slf4j
@Service
public class UserService {
    private static final String CSV_FILE = "src/main/resources/static/users.csv";

    public List<User> findAll() {
        log.info("find all users");
        try (Stream<String> lines = Files.lines(Paths.get(CSV_FILE))) {
            return lines
                    .map(this::fromCsv)
                    .collect(Collectors.toList());
        } catch (IOException e) {
            return new ArrayList<>();
        }
    }

    public User save(User user) {
        log.info("save user");
        List<User> users = findAll();
        long nextId = users.stream()
                .mapToLong(User::id)
                .max()
                .orElse(0L) + 1;

        User newUser = new User(nextId, user.name(), user.age());
        users.add(newUser);
        writeAll(users);
        return newUser;
    }

    public Optional<User> findById(Long id) {
        log.info("find user by id");
        return findAll().stream()
                .filter(u -> u.id().equals(id))
                .findFirst();
    }

    public boolean delete(Long id) {
        log.info("delete user");
        List<User> users = findAll();
        boolean removed = users.removeIf(u -> u.id().equals(id));
        if (removed) {
            writeAll(users);
        }
        return removed;
    }

    public Optional<User> update(Long id, User updatedUser) {
        log.info("update user");
        List<User> users = findAll();
        for (int i = 0; i < users.size(); i++) {
            if (users.get(i).id().equals(id)) {
                User newUser = new User(id, updatedUser.name(), updatedUser.age());
                users.set(i, newUser);
                writeAll(users);
                return Optional.of(newUser);
            }
        }
        return Optional.empty();
    }

    /**
     * Write all users to .csv file (fake DB)
     * @param users list of users to write
     */
    private void writeAll(List<User> users) {
        try (PrintWriter writer = new PrintWriter(CSV_FILE)) {
            users.forEach(u -> writer.println(toCsv(u)));
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    private String toCsv(User user) {
        return String.format("%d,%s,%d", user.id(), user.name(), user.age());
    }

    private User fromCsv(String line) {
        String[] parts = line.split(",");
        return new User(Long.parseLong(parts[0]), parts[1], Integer.parseInt(parts[2]));
    }
}

Controller

UserController.java

package com.pietropoluzzi.user_crud_server.controllers;

// imports ...

@RestController
@RequestMapping("/users")
public class UserController {

    private final UserService service;

    public UserController(UserService service) {
        this.service = service;
    }

    @SwaggerGetAllUsers
    @GetMapping
    public List<User> getAllUsers() {
        return service.findAll();
    }

    @SwaggerCreateUser
    @PostMapping
    public ResponseEntity<?> createUser(@RequestBody User user) {
        UserResult result = service.save(user);

        if (result.isSuccessFlag()) {
            return ResponseEntity.status(HttpStatus.OK).body(result.getUser());
            // return new ResponseEntity<>(result.getUser(), HttpStatus.CREATED);
        } else {
            return ResponseEntity.status(HttpStatus.BAD_REQUEST).body(result.getErrorMsg());
            // return new ResponseEntity<>(result.getErrorMsg(), HttpStatus.BAD_REQUEST);
        }
    }

    @SwaggerGetUser
    @GetMapping("/{id}")
    public ResponseEntity<?> getUser(@PathVariable Long id) {
        UserResult result = service.findById(id);

        if (result.isSuccessFlag()) {
            return ResponseEntity.status(HttpStatus.OK).body(result.getUser());
        } else {
            return ResponseEntity.status(HttpStatus.BAD_REQUEST).body(result.getErrorMsg());
        }
    }

    @SwaggerUserUpdate
    @PutMapping("/{id}")
    public ResponseEntity<?> updateUser(@PathVariable Long id, @RequestBody User user) {
        UserResult result = service.update(id, user);

        if (result.isSuccessFlag()) {
            return ResponseEntity.status(HttpStatus.OK).body(result.getUser());
        } else {
            return ResponseEntity.status(HttpStatus.BAD_REQUEST).body(result.getErrorMsg());
        }
    }

    @SwaggerUserDelete
    @DeleteMapping("/{id}")
    public ResponseEntity<?> deleteUser(@PathVariable Long id) {
        UserResult result = service.delete(id);

        if (result.isSuccessFlag()) {
            return ResponseEntity.status(HttpStatus.OK).body(result.getUser());
        } else {
            // this is a finesse to show that additional controls can be made
            // if the ID a positive long but does not represent any user, returns a NOT_FOUND status
            // if the ID is malformed (e.g. negative), returns a BAD_REQUEST status
            if (Objects.equals(result.getErrorMsg(), "User not found"))
                return ResponseEntity.status(HttpStatus.NOT_FOUND).body(result.getErrorMsg());
            else return ResponseEntity.status(HttpStatus.BAD_REQUEST).body(result.getErrorMsg());
        }
    }
}

Please Note

The code snippets above include custom Swagger UI annotations. Please refer to GitLab repository to read the full code of those annotations.

Server API calls

Here is a list of API calls based on the OS you’re using.

POST

Windows

Windows PowerShell

curl -Method POST http://localhost:8080/users `
  -Headers @{ "Content-Type" = "application/json" } `
  -Body '{ "name": "John", "age": 18 }'

Linux

Bash Terminal

curl -X POST http://localhost:8080/users \
  -H "Content-Type: application/json" \
  -d '{"name": "Bill", "age": 20}'

---

GET by ID

Windows

Windows PowerShell

curl -Method GET http://localhost:8080/users/1

Linux

Bash Terminal

# get User from id=1
curl -X GET http://localhost:8080/users/1

---

GET all

Windows

Windows PowerShell

curl -Method GET http://localhost:8080/users

Linux

Bash Terminal

# get User from id=1
curl -X GET http://localhost:8080/users

---

UPDATE by ID

Windows

Windows PowerShell

curl -Method PUT http://localhost:8080/users/1 `
  -Headers @{ "Content-Type" = "application/json" } `
  -Body '{ "name": "New Name", "age": 18 }'

Linux

Bash Terminal

curl -X PUT http://localhost:8080/users/1 \
  -H "Content-Type: application/json" \
  -d '{"name": "New Name", "age": 20}'

---

DELETE by ID

Windows

Windows PowerShell

curl -Method DELETE http://localhost:8080/users/1

Linux

Bash Terminal

curl -X DELETE http://localhost:8080/users/1

API Documentation

Add the following dependency to the pom.xml file in order to enable Swagger UI:

pom.xml

<dependency>
  <groupId>org.springdoc</groupId>
  <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
  <version>2.5.0</version>
</dependency>

Then run the project and take a look at localhost:8080/swagger-ui/index.html page.

Let’s create a utility record class called UserRequest.java to be used within Swagger annotations. It has the same parameters as User.java except for the id (which is auto-generated by UserService.java class):

UserRequest.java

package com.pietropoluzzi.user_crud_server.models;

import io.swagger.v3.oas.annotations.media.Schema;

@Schema(description = "Payload for creating a new user")
public record UserRequest(
        @Schema(description = "User name", example = "John") String name,
        @Schema(description = "User age", example = "24") Integer age) {
}

Be Careful

@RequestBody annotation from Swagger conflicts with @RequestBody annotation from Spring.

@RequestBody annotation from io.swagger.v3.oas.annotations.parameters conflicts with @RequestBody annotation from org.springframework.web.bind.annotation.RequestBody.

The most straightforward solution is to use fully-qualified name for Swagger’s @RequestBody.

UserController.java

package com.pietropoluzzi.user_crud_server.controllers;

import io.swagger.v3.oas.annotations.Operation;
import io.swagger.v3.oas.annotations.media.Content;
import io.swagger.v3.oas.annotations.media.Schema;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;
// DO NOT import io.swagger.v3.oas.annotations.parameters.RequestBody

@RestController
@RequestMapping("/users")
public class UserController {

    // ...
    @Operation(
            summary = "Create a new user",
            description = "Add a new user to the database.",
            requestBody = @io.swagger.v3.oas.annotations.parameters.RequestBody(
                    required = true,
                    content = @Content(
                            mediaType = "application/json",
                            schema = @Schema(implementation = UserRequest.class)
                    )
            )
    )
    @PostMapping
    public User createUser(@RequestBody User user) {
        return service.save(user);
    }
}

Custom Swagger package

To avoid writing controllers with hundreds of lines of code dedicated to Swagger annotations, you can create a package where to put custom interfaces for each REST API method. Then, just annotate the API methods within the controller with the custom interfaces.

Let’s take the POST method that creates a new user. The following code snippets shows both UserController implementation and SwaggerCreateUser interface:

UserController

UserController.java

package com.pietropoluzzi.user_crud_server.controllers;

// import ...

@RestController
@RequestMapping("/users")
public class UserController {

    @SwaggerCreateUser
    @PostMapping
    public ResponseEntity<?> createUser(@RequestBody User user) {
        /* method implementation */
    }

    /* all the other CRUD endpoints */
}

SwaggerCreateUser

SwaggerCreateUser.java

package com.pietropoluzzi.user_crud_server.swagger;

import com.pietropoluzzi.user_crud_server.models.User;
import com.pietropoluzzi.user_crud_server.models.UserRequest;
import io.swagger.v3.oas.annotations.Operation;
import io.swagger.v3.oas.annotations.media.Content;
import io.swagger.v3.oas.annotations.media.ExampleObject;
import io.swagger.v3.oas.annotations.media.Schema;
import io.swagger.v3.oas.annotations.responses.ApiResponse;
import io.swagger.v3.oas.annotations.responses.ApiResponses;

import java.lang.annotation.*;

@Target({ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Operation(
        summary = "Create a new user",
        description = "Add a new user to the database. ID is generated automatically.",
        requestBody = @io.swagger.v3.oas.annotations.parameters.RequestBody(
                required = true,
                content = @Content(
                        mediaType = "application/json",
                        schema = @Schema(implementation = UserRequest.class)
                )
        )
)
@ApiResponses(value = {
        @ApiResponse(
                responseCode = "200",
                description = "User successfully created",
                content = @Content(
                        mediaType = "application/json",
                        schema = @Schema(implementation = User.class)
                )
        ),
        @ApiResponse(
                responseCode = "400",
                description = "Bad request",
                content = @Content(
                        mediaType = "text/plain",
                        examples = {
                                @ExampleObject(name = SwaggerConstants.AGE_NAME,  summary = SwaggerConstants.AGE_SUM, value = SwaggerConstants.AGE),
                                @ExampleObject(name = SwaggerConstants.NAME_NAME,  summary = SwaggerConstants.NAME_SUM, value = SwaggerConstants.NAME)
                        }
                )
        )
})
public @interface SwaggerCreateUser {}
